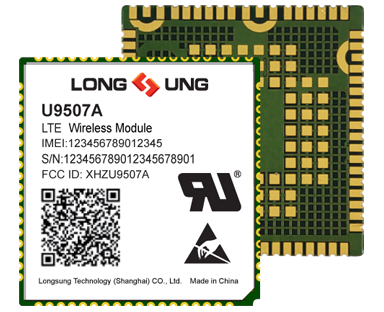

U9507A is a new generation of Longsung LTE wireless module, rich of Internet protocols, and indstry-
standard interfaces and abundant functionalities. It can be designed in many kinds of applications
which can work on LTE-FDD/UMTS/GSM/GPS/GLONASS (Optional) network.。
On LTE-FDD network, U9507A enables connect to the Internet at DL data speed up to 150Mbps and
UL data speed up to 50Mbps. In the area where LTE service are not available, U9507A still enables
reliable and secure data connect over 3G(UMTS) or 2G(GSM) network.
U9507A provides SMS, MMS, Phonebook functions as well as
function. It can be designed in many kinds of applications. Such
Electric-book, MID, Vehicle equipment, etc.
U9507A is a new generation of Longsung LTE wireless module, rich of Internet protocols, and indstry-
standard interfaces and abundant functionalities. It can be designed in many kinds of applications
which can work on LTE-FDD/UMTS/GSM/GPS/GLONASS (Optional) network.。
On LTE-FDD network, U9507A enables connect to the Internet at DL data speed up to 150Mbps and
UL data speed up to 50Mbps. In the area where LTE service are not available, U9507A still enables
reliable and secure data connect over 3G(UMTS) or 2G(GSM) network.
U9507A provides SMS, MMS, Phonebook functions as well as
function. It can be designed in many kinds of applications. Such
Electric-book, MID, Vehicle equipment, etc.
Specifications for data:
• Support Release 11 Category 4
• LTE-FDD up to 150 Mbps DL,50 Mbps UL
• DC-HSPA+ up to 42Mbps DL,5.76Mbps UL
• EDGE class 33: 296Kbps DL,236.8Kbps UL
• GPRS class 33: 107kbps DL,85.6kbps UL
• CSD up to 14.4 kbps
• Transparent mode
• PBCCH support
• PPP-stack
• Coding schemes CS 1,2,3,4
• FOTA
• TCP/IP
• NDIS
Specifications for GPS:
• GPS frequency: 1575.42MHz
• At least support 44 channels
• accuracy: ＜ 10m
• Sensitivity: - Acquisition: -158dBm - Tracking: -162dBm
• TTFF: - Cold Start: 28S - Warm Start: 18S - Hot Start: 1S
GLONASS(Optional):
• GLONASS frequency: 1601.7MHz
• At least support 44 channels
• Sensitivity: - Acquisition: -155dBm - Tracking: -160dBm
• TTFF: - Cold Start: 35s - Warm Start: 29s - Hot Start: 1s
Interfaces:
• Power supply
• USB 2.0 high speed
• UICC/SIM/UIM card interface 3 V, 1.8 V
• UART
• PCM
• Antenna connector
• HSIC
Approvals:
• RoHS / CE / GCF / RCM / NCC
Additional features:
• VoLTE
• Phone book
• PCM
• DTMF
